Product Description
Quality matters and American Radio Supply is a trusted supplier of genuine OEM components. We supply the U.S. Armed Forces and RF Communication Professionals worldwide.

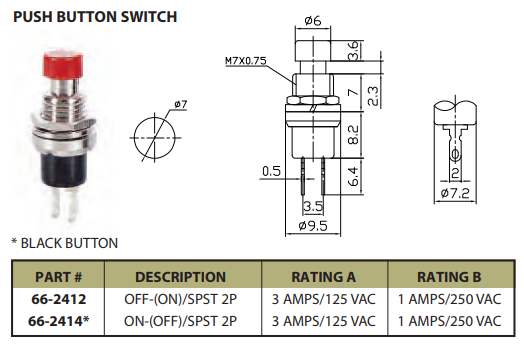

Specification
- Contact: SPST
- Voltage Rating: 125 VAC
- Position: Normally Open (NO)
- Switch Function OFF-ON / NORMALLY 'OFF' / MOMENTARY 'ON' (CLOSED)
- Contact Rating: 3A @ 125VAC / 1A @ 250VAC
- Insulation Resistance:500VDC 100MΩ min
- Dielectric Strength:1000VAC 1Minute
- Operating Temperature:-25℃~+85℃
- Electrical Life:50,000 Cycles
- Body Color: Silver
- Color: Actuator Cap Red
- Termination Style: Solder Lugs / Pins: 2
- Length: 1.08 in.
- Actuator Type: Round Button
- Illumination Type: None
- Mounting Style: Panel / Rear
